Masterflex 07519-15 L/S 6声道，六辊筒泵的扬程

Masterflex L / S 6声道，六辊筒泵的扬程

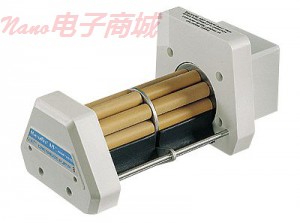

Masterflex L/S 6-channel, 6-roller cartridge pump head.

从多个渠道的同步，低脉动流

流速：0.033〜170毫升/分钟，每通道

插装泵：1到6大

齿轮比：5:1

闭塞：偏移，切线，可调

驱动器要求：1/10-hp分钟，600 rpm最大

结构材料：不锈钢转子中，鲁伦®辊，聚砜两端

插装泵接受多种插装，每个通道实现流同步。

插装泵快速进出，管子快速变化无需卸下驱动泵头，

只有硅管和C-Flex 管需要配制尺寸L/S ® 17管L/ S®泵头

提示：选择提示更多的辊产生较少的脉动。插装不包括泵头

交换小型和大型插装; 2小等于1大

Synchronous, low-pulsation flow from multiple channels

Flow rates: 0.033 to 170 mL/min per channel

Number of cartridges: 1 to 6 large

Gear ratio: 5:1

Occlusion: offset, tangential, adjustable

Drive requirements: 1/10-hp min, 600 rpm max

Materials of construction: stainless-steel rotor, Rulon® rollers, and polysulfone ends

Cartridge pump heads accept multiple cartridges enabling synchronous flow from each channel. Cartridges snap in and out of the pump head for fast tubing changes—no need to remove pump head from the drive

Only Silicone and C-Flex® tubing formulations are recommended for size L/S® 17 tubing when used in L/S®cartridge pump heads.

Hot Tips:

SELECTION TIPS

More rollers generate less pulsation.

Cartridges are not included with pump head

Interchange small and large cartridges; 2 small = 1 large

产品规格
水泵系列	L / S
产品类型	墨盒泵头
最大流量（每通道）	170毫升/分钟
最小流量（每通道）	0.033毫升/分钟
流程图	点击查看
通道号	1至6个
驱动器的要求	1/10，600 rpm最大马力分钟
结构材料	鲁伦®辊，不锈钢转子，聚砜结束
压路机	6
闭塞	偏移，切，可调
变速比	5:1
最大。墨盒（大）	6  （07519-75墨盒型号）
接受油管	硅胶C-Flex®管配方
品牌	Masterflex
生产编号	07519-15

Specifications
Pump Series	L/S
Product Type	Cartridge for Pump Heads
Max flow rate (per channel)	170 mL/min
Min flow rate (per channel)	0.033 mL/min
Flow Chart	Click to View
No. of channels	1 to 6
Drive requirements	1/10 hp min, 600 rpm max
Materials of construction	Stainless steel rotor, Rulon® rollers, polysulfone ends
Rollers	6
Occlusion	Offset, tangential, adjustable
Gear ratio	5:1
Max. No. of cartridges (Large)	6 (Cartridge model 07519-75)
Accepted tubing	Silicone and C-Flex® tubing formulations
Brand	Masterflex
Manufacturer number	07519-15
