Masterflex 77200-20 L / S结构紧凑，低流量，变速驱动器，115/230 VAC

Masterflex L / S结构紧凑，低流量，变速驱动器，115/230 VAC

Masterflex L/S compact, low-flow, variable-speed drive, 115/230 VAC

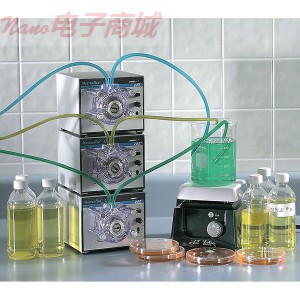

可堆叠的，小巧型泵驱动器在有限空间内提供通用的性能

流量：2.1〜560毫升/分钟;流速取决于驱动器转速和泵管尺寸。

堆叠，小巧型驱动测量5-3/8“长 x 5-3/16”宽x 4-1/2“高 适用于小工作区。

彩涂钢板外壳防护等级IP22。外壳保护驱动防止落水。

独立的单圈速度控制和绿色电源指示灯开启/关闭开关，保持速度设置而转向泵开/关。

MAX按钮泵在最大转速下运行，用于涂漆或快速冲洗管。

可逆永磁直流电动机可以让泵在任何方位。

泵的背面有远程控制选项。通过触点闭合启动/停止泵。

驱动器可接受两种不同的泵头类型：标准，易装®。

小巧型驱动器从Masterflex ® C / L®管式泵完美升级。非常适合那些需高流速泵驱动，而空间又非常有限的实验室使用。

可与驱动器配合使用的管有L/S ®精密泵管，尺寸L/S®13，L/S®14L/S ®16，L/S®25，L/S® 17。

只有有机硅和C-FLEX ®泵管配方建议使用L/S® 17和L/S® 25规格管。

Stackable, compact pump drive delivers versatile performance in limited space

Flow rate: 2.1 to 560 mL/min; flow rate depends on drive rpm and tubing size.

Stackable, compact drive measures 5-3/8"L x 5-3/16"W x 4-1/2"H —perfect for small work areas.

Painted steel housing is IP22 rated. Housing protects drive from vertically falling water.

Separate single-turn speed control and on/off switch with green power indicator; maintain speed setting while turning pump on/off.

MAX button runs pump at maximum rpm—use to prime or to rapidly flush tubing.

Reversible permanent magnet DC motor lets you pump in either direction.

Remote control options on the back of pump. Start/stop pump via contact closure.

Drive accepts two different pump head types: Standard and Easy-Load®.

Compact drives are a perfect upgrade from a Masterflex®C/L® tubing pump. Ideal for when you need to pump fluid at a higher rate, but space is limited in your lab.

Use these drives with L/S® precision pump tubing in sizes L/S® 13, L/S® 14, L/S® 16, L/S® 25, L/S® 17. Only silicone and C-FLEX® tubing formulations are recommended for L/S® 17 and L/S® 25 size tubing.
