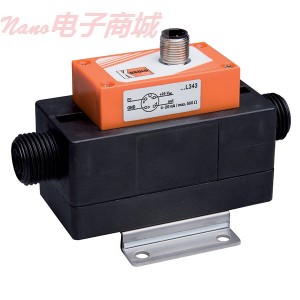

德国Kobold MIK-5NAUDN L343 磁感应流量计1 1/4“PVC管件; 2至40 GPM; 4至20 mA输出

德国Kobold MIK-5NAUDN L343 磁感应流量计1 1/4“PVC管件; 2至40 GPM; 4至20 mA输出

可以应用于各种导电性的液体，酸，焦散等流体的流量测量。

应用磁感应技术，没有移动部件

不锈钢焊条焊接的Ryton  PPS机身。

PVC或PP配件

MIK Kobald系列磁感应流量计是测量导电液体的流量的理想选择，是应对可靠性和低电磁流量计压力损失需要的完美解决方案。

这些流量计测量流量使用磁感应原理。根据法拉第电磁感应定律，产生感应电流的导体，因为它的动作通过磁场。产生的电流与导体运动速度成正比。作为导体的导电性液体，通过仪表表体上安装的一组电磁线圈产生磁场。安装在表体中的电极处收集电流，其电流大小与流量成正比。

这些固态元件没有移动部件磨损问题，使他们非常可靠。对于粘性和肮脏的液体测量没有防治精度退化。内部采用的是的湿物料聚苯硫醚PPS 316L不锈钢焊条。选择从仪表输出4至20 mA电流或通过一个PNP开关显示。附件34900-90是一个4针，6英尺微型DC连接器电缆为4至20 mA输出模式。附件34900-92是一个6英尺5针，通过微型DC连接器电缆与显示和输出相连的机型。

Magneto-inductive Flowmeter With 3/8" PVC Fittings; 0.20 To 4 GPM; 4 To 20 mA Output

For use with a wide variety of conductive liquids, acids, and caustics

Magneto-inductive technology with no moving parts

Ryton? PPS body with stainless steel electrodes

PVC or PP fittings

The Kobald MIK-series magneto-inductive flowmeter is the perfect solution for measuring the flow of conductive liquids in applications where the reliability and low pressure loss of a magmeter is desired.

These meters measure flow using the magneto-inductive principle. According to Faraday’s law of magnetic induction, current is induced into a conductor as it moves through a magnetic field. The amount of current induced is directly proportional to the velocity of the moving conductor. A conductive liquid passing through the meter and the body acts as the conductor. The meter body contains a set of electromagnetic coils that generate the magnetic field. Electrodes mounted in the meter body collect the current whose magnitude is proportional to flowrate.
