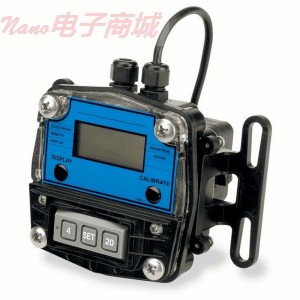

Great Plains Industries GM007R2R21-6 涡轮流量计

Great Plains Industries GM007R2R21-6 涡轮流量计

低流量，高粘度容积

从0.53 GPH到32 GPM的流速，粘度可达1000 cps和三个建筑材料，这种电表可以处理大多数测量应用。正排量椭圆齿轮流量计，不需要校准和可精确到±0.5％的读数。选择磁簧开关脉冲输出或4-20mA输出，添加电池供电的流量/累计值显示。

其中包括自动开/关和手册，工厂校准，并进行现场校准。回路供电4-20mA输出，按键4和20mA信号简单和容易设置。铝被推荐用于石油产品，聚苯硫醚和不锈钢型号可供产品从水到石油，产品腐蚀性酸和焦散。

Low Flow and High Viscosity Positive Displacement

With flowrates from 0.53 GPH to 32 GPM, viscosities up to 1000 cps and three housing materials, this meter can handle most metering applications. This positive displacement oval gear meter does not require calibration and is accurate to within ±0.5% of reading. Select the reed switch pulse output or 4-20 mA output. Add the battery powered Flow/Totalizer display,
which includes automatic on/off and manual on, factory calibration, and field calibration. The loop powered 4-20 mA output uses three buttons for simple and easy setting of 4 and 20 mA signals. Aluminum is recommended for petroleum products. Ryton and Stainless Steel models are available for products ranging from water to petroleum products to aggressive acids and caustics.
