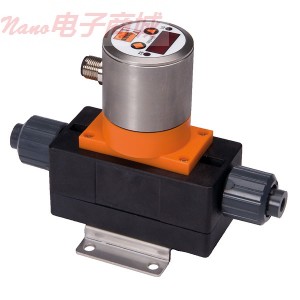

Kobold MIK-5NAUGR C34P 电磁流量计

Kobold MIK-5NAUGR C34P 电磁流量计

与各种导电液体，酸和苛性碱的使用

磁感应的技术，没有移动部件

Ryton®PPS机身采用不锈钢焊条

PVC或PP管件

Kobald MIK系列磁感应流量计是用于测量在应用中一个电磁流量计的可靠性和低压力损失所需的导电液体的流量的最佳解决方案。

这些仪表测量流量采用磁感应原理。根据电磁感应的法拉第定律，电流被感应到一个导体移动通过一个磁场。感应电流的量成正比可移动导体的速度。一种导电液体流经流量计和主体充当导体。流量计本体包括一组产生的磁场的电磁线圈。电极安装在所述流量计主体，收集的大小正比于流速的电流。

这些固态计量器没有移动部件磨损，使他们非常的可靠，粘性和肮脏的液体测量精度恶化。对于流动体的湿材料的Ryton PPS与316L不锈钢焊条选择计量器，4至20 mA输出或带有显示器和4-20 mA的输出与一个PNP开关。附件34900-90是一个4针，6英尺微型直流连接器为4至20mA输出模块的电缆。附件34900-92是一个5针，6英尺微型DC连接器与显示和输出型号的电缆。

For use with a wide variety of conductive liquids, acids, and caustics

Magneto-inductive technology with no moving parts

Ryton^® PPS body with stainless steel electrodes

PVC or PP fittings

The Kobald MIK-series magneto-inductive flowmeter is the perfect solution for measuring the flow of conductive liquids in applications where the reliability and low pressure loss of a magmeter is desired.

These meters measure flow using the magneto-inductive principle. According to Faraday’s law of magnetic induction, current is induced into a conductor as it moves through a magnetic field. The amount of current induced is directly proportional to the velocity of the moving conductor. A conductive liquid passing through the meter and the body acts as the conductor. The meter body contains a set of electromagnetic coils that generate the magnetic field. Electrodes mounted in the meter body collect the current whose magnitude is proportional to flowrate.

These solid-state meters have no moving parts to wear out, making them very reliable. Viscous and dirty liquids are measured with no accuracy degredation. The wetted materials for the flow body are Ryton PPS with 316L stainless steel electrodes. Choose from meters with 4 to 20 mA output or with a display and 4 to 20 mA output with one PNP switch. Accessory 34900-90 is a 4-pin, 6-ft micro-DC connector cable for the 4 to 20 mA output models. Accessory 34900-92 is a 5-pin, 6-ft micro-DC connector cable for models with display and output.
