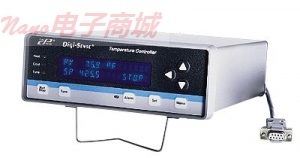

Digi-Sense CPTEMCTPDLX02 温度控制器
功能直接插入式加热设备
多种控制模式，从简单的开/关控制到复杂的自整定PID控制
先进的机型包括计算机远程控制所有的系统操作的免费软件
程序九斜坡浸泡型材高达16段先进典型
易于使用
纯英文菜单，同时显示两行显示测量值和设定point.Temperature的规模选择读°C，°F，K（开尔文），和°R（兰）。非易失性EEPROM存储器存储设置和运行参数，保存参数，甚至在功率损耗。前面板的LED显示输出和报警条件。传感器校准功能，纠正错误探头轻松连接控制器有一个方便的输出插座直接插在电热水器和其他设备（IEC 230 VAC型号）。所有型号都接受八个类型的热电偶（先进机型也接受RTD和YSI热敏电阻探头）。*使用一个250Ω电阻转换为1至5 V的信号。
|
产品规格
|
|
产品类型
|
温度控制
|
|
控制输入（热电偶）
|
是
|
|
控制输入（RTD）
|
是
|
|
控制输入（热敏电阻）
|
是
|
|
控制输出1
|
电源插座额定为115/230 VAC最大15
|
|
控制输出2
|
继电器：SPDT额定230 VAC最大2 A;电阻
|
|
报警输出
|
是
|
|
通讯输出
|
RS-232
|
|
控制输出
|
电源插座额定为115/230 VAC最大15
|
|
最低温度（ºC）
|
0
|
|
最高温度（°C）
|
40
|
|
最低温度（ºF）
|
32
|
|
最高温度（ºF）
|
104
|
|
外形尺寸（W）
|
7-1/4
|
|
尺寸（“H）
|
3-3/4
|
|
尺寸（“D）
|
10
|
|
显示
|
真空荧光
两行
16个字符的字母数字的
3/16“H每个
|
|
解析度
|
0.1°1°999.9°以上，低于-99.9°
|
|
准确性
|
类型：J，K，T，E，N：读数的±0.1％和±0.7°F（0.4°C）以上-248°F（-100°C）
读数的±0.1％和±2°F（1°C）低于-248°F（-100°C）类型B，R，S：读数的±0.1％和±1.8°F（212°
|
|
品牌
|
Digi-Sense
|
|
型号
|
CPTEMCTPDLX02
|
|
出厂编号
|
CPTEMCTPDLX02
|
|
电源（VAC）
|
230
|
Feature direct plug-in of heating devices
Multiple control modes from simple on/off control to sophisticated autotuning PID control
Advanced models include FREE software for remote computer control of all system operations
Program up to nine ramp and soak profiles of up to 16 segments each with the advanced models
Easy to use
Plain English menus with two-line display simultaneously show measured value and set point.Temperature scale is selectable to read in °C, °F, K (Kelvin), and °R (Rankine). Nonvolatile EEPROM memory stores set-up and operating parameters—saves parameters even during power loss. Front-panel LEDs indicate output and alarm conditions. Sensor-calibrate function corrects for probe error.
Easy to connect
Controller has a convenient output receptacle for direct plug-in of heaters and other devices (IEC on 230 VAC models). All models accept eight thermocouple types (advanced models also accept RTDs and YSI thermistor probes). Place unit on a benchtop or mount with optional panel-mount kit.
*Use a 250 Ω resistor to convert to a 1 to 5 V signal.
|
Specifications
|
|
Product Type
|
Temperature control
|
|
Control input (thermocouple)
|
Yes
|
|
Control input (RTD)
|
Yes
|
|
Control input (Thermistor)
|
Yes
|
|
Control output 1
|
power receptacle rated for 115/230 VAC 15 A max
|
|
Control output 2
|
Relay: SPDT rated from 230 VAC 2 A max; resistive
|
|
Alarm output
|
Yes
|
|
Communication output
|
RS-232
|
|
Control output
|
power receptacle rated for 115/230 VAC 15 A max
|
|
Min temperature (º C)
|
0
|
|
Max temperature (º C)
|
40
|
|
Min temperature (º F)
|
32
|
|
Max temperature (º F)
|
104
|
|
Dimensions (" W)
|
7-1/4
|
|
Dimensions (" H)
|
3-3/4
|
|
Dimensions (" D)
|
10
|
|
Display
|
vacuum fluorescent
two lines
16-character alphanumerics
3/16"H each
|
|
Resolution
|
0.1°; 1° above 999.9° and below -99.9°
|
|
Accuracy
|
Types J, K, T, E, N: ±0.1% reading and ±0.7°F (0.4°C) above -248°F (-100°C)
±0.1% reading and ±2°F (1°C) below -248°F (-100°C)
Types B, R, S: ±0.1% reading and ±1.8°F (1°
|
|
Brand
|
Digi-Sense
|
|
Model
|
CPTEMCTPDLX02
|
|
Manufacturer number
|
CPTEMCTPDLX02
|
|
Power (VAC)
|
230
|
