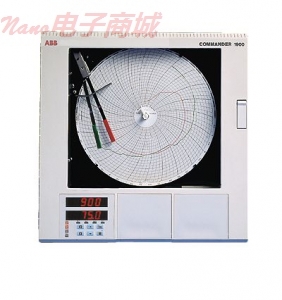

ABB Commander C1922RA001100000STD 长条图表记录仪

产品规格

产品类型

图表记录器/控制器

报警

编号：四个每通道
类型：过程高/低，快/慢的变化率，偏差高/低，输出高/低
调整滞后，时间延迟

输入阻抗

> 10兆欧姆（MV和V输入），100欧姆（mA输入）

数字输入

类型：TTL或无电压
最小脉冲：250毫秒
隔离：500 VDC模块之间没有隔离模块内

录音笔

招聘人数：2
响应时间：7秒（满量程）
分辨率：0.1％步骤
笔升降电机驱动，可选自动降

事件笔

标准：3任何通道上
实时位置：3位在同一个时间线笔1

串行通信

RS-485，四线MODBUS RTU

逻辑方程

号码：八个
功能：，
输入：报警状态，数字输入，累加器，逻辑
输出：继电器，开关量输出，图表停止，报警确认

继电器输出

SPDT，额定在115/230 VAC（无感负载5）

符合CE认证

是

尺寸

15（宽）x 15.25高x 6在D（38厘米宽×39厘米高x 14厘米深）

型号

C1922RA001100000STD

生产编号

C1922RA001100000STD

功率

115/230 VAC，50/60赫兹

品牌

ABB Commander

Specifications

Product Type

Chart Recorder/Controllers

Alarm

Number: four per channel
Type: high/low process, fast/slow rate of change, deviation high/low, output high/low
Adjustments: hysteresis, time delay

Input impedance

> 10 M ohm (mV and V inputs), 100 ohm (mA inputs)

Digital input

Type: TTL or volt free
Minimum pulse: 250 ms
Isolation: 500 VDC between modules, no isolation within modules

Recording pens

Number: 2
Response time: 7 seconds (full scale)
Resolution: 0.1% steps
Pen lift: motor-driven, with optional auto-drop

Event pens

Standard: 3-position on any channel
Real time: 3-position on the same time line as pen 1

Serial communication

RS-485, four-wire MODBUS® RTU

Logic equations

Number: eight
Function: OR, AND
Inputs: alarm states, digital inputs, totalizers, logic
Outputs: relays, digital outputs,chart stop, alarm acknowledge

Relay output

SPDT, rated 5 A at 115/230 VAC(noninductive load)

CE Compliance

Yes

Dimensions

15 in W x 15.25 in H x 6 in D (38 cm W x 39 cm H x 14 cm D)

Model

C1922RA001100000STD

Manufacturer number

C1922RA001100000STD

Power

115/230 VAC 50/60 Hz

Brand

ABB Commander
