AEMC L264 简单的记录器II 4通道型号，真有效值，600VAC/DC

AEMC L264 简单的记录器II 4通道型号，真有效值，600VAC/DC

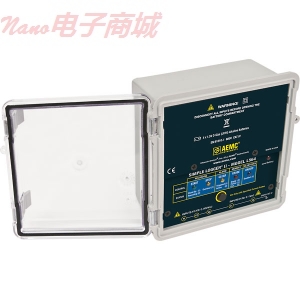

AEMC Simple Logger II 4-Channel Model, TRMS, 600Vac/dc, Model L264

集成 蓝牙® 无线连接，数据流畅传输

真有效值电压记录600VAC/DC

每个周期64个样品

可编程存储速率从8每秒至1每天

4个用户可选的存储模式

非易失性存储器中可存储多达1,000,000测量结果

标准碱性电池，运行180天

包括的DataView®软件FREE数据存储，实时波形显示，分析和生成报告

安全等级CAT IV 600V，1000V CAT III

四通道简单的记录器® II真有效值功率数据记录仪提供可编程存储速率从8每秒至1每天。非易失性存储器中可存储多达1,000,000测量结果，即使电池电量低或移除数据仍被保留。用户可选择的存储模式包括启动/停止，FIFO,扩展记录模式(XRM)和存储报警。

设置和操作简单，直观。

特点

蓝牙®通信和DataView ®软件，用于数据存储，实时显示，分析和生成报告。6个LED指示灯清楚地显示记录器的状态。

包含：

蓝牙® USB适配器，DataView软件，说明书，安装硬件，以及四个C电池。

Integrated Bluetooth® wireless connectivity for smooth data transfer

TRMS voltage recording up to 600VAC/DC

64 samples per cycle

Programmable storage rates from 8 per second to 1 every day

4 user selectable storage modes

Stores up to 1,000,000 measurements in non-volatile memory

Up to 180 days of operation from standard Alkaline batteries

Includes DataView® software FREE for data storage, real-time waveform display, analysis and report generation

Safety Ratings 600V CAT IV; 1000V CAT III

Four-channel Simple Logger® II TRMS power data loggers offer programmable storage rates from 8 per second to 1 per day. Store up to 1,000,000 measurements in the nonvolatile memory; data is retained even if battery is low or removed. User-selectable storage modes include start/stop, FIFO, extended recording mode (XRM™), and store on alarm.

Setup and operation is easy and intuitive. Features

Bluetooth® communication and DataView® software for data storage, real-time display, analysis, and report generation. Six LED indicators clearly display logger status.

What's Included:

Bluetooth® USB adapter, DataView software, manual, mounting hardware, and four C batteries.

产品规格
产品类型	数据记录器，真正的RMS功率
附带软件	的DataView®软件
直流电压准确度	0〜5 V：未指定，5至50 V：±（0.5％读值+ 1 V），50到600 V：±（0.5％读数+ 0.5 V）
直流电压范围	0至600 VAC / DC
输入类型	五个凹陷香蕉插孔
日志记录的时间间隔	15分钟至8周，可编程使用DataView软件
内存容量	1,000,000测量（2 MB）。记录的数据存储在非易失性存储器和保留，即使电池电量低或移除。
通道号	四
功率	4个C型电池/天至180天（依赖于存储速率/记录长度）
记录间隔	可编程从每秒8到每天1
采样率	64个采样点/周期
尺寸	6“×6”×3 1/2“（150×150×91毫米）
品牌	AEMC
型号	L264





Specifications
Product Type	Data Logger, True RMS Power
Software included	DataView® software
DC voltage accuracy	0 to 5 V: unspecified, 5 to 50 V: ±(0.5% of rdg + 1 V), 50 to 600 V: ±(0.5% of rdg + 0.5 V)
DC voltage range	0 to 600 VAC/DC
Input type	Five recessed banana jacks
Logging intervals	15 minutes to 8 weeks, programmable using DataView software
Memory capacity	1,000,000 measurements (2 MB). Recorded data is stored in nonvolatile memory and retained even if battery is low or removed.
No. of channels	Four
Power	Four C batteries / up to 180 days (dependent on storage rate/recording length)
Recording interval	Programmable from 8 per second to 1 per day
Sampling rate	64 samples/cycle
Dimensions	6" x 6" x 3 1/2" (150 x 150 x 91 mm)
Brand	AEMC
Model	L264
