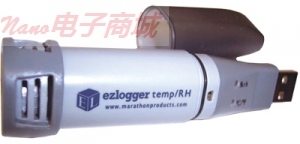

ezLogger™温湿度数据记录仪（包括MDASf专业软件）TH-789601

ezLogger™



温湿度数据记录仪 Temperature & Humidity Data Logger

USB连接到电脑

配置&管理软件

用户可选择的报警阈值

测量间隔时间为10秒至18小时

21CFR: Part 11软件可用

LED指示状态记录器

IP67防护等级

符合RoHS标准

USB Connection to PC

Configuration & Management Software

User-selectable alarm thresholds

Measurement intervals from 10 seconds to over 18 hours

21CFR: Part 11 software is available

LEDs indicate logger status

IP67 protection

RoHS compliant

这个数据记录器测量并存储多达16382相对湿度和16382温度读数为0〜100％RH和-31°F至176°F（-35℃至80℃）的测量范围。用户可以轻松地设置日志记录速度和启动时间，直接插入PC的USB端口在Windows 2000下运行MDAS-Pro软件（组态和绘图软件），XP中，Vista或Windows下载存储的数据7（仅限32位）。相对湿度，温度和露点（在水蒸气存在于空气中开始冷凝的温度）的数据可以被绘制，印刷并输出到其他的应用程序。

This data logger measures and stores up to 16,382 relative humidity and 16,382 temperature readings from 0 to 100%RH and -31°F to 176°F (-35°C to 80°C) measurement ranges. The user can easily set up the logging rate and start time, and download the stored data by pugging the module straight into a PC’s USB port and running the MDAS-Pro software (configuration and graphing software) under Windows 2000, XP, Vista or Windows 7 (32-bit only). Relative humidity, temperature and dewpoint (the temperature at which water vapor present in the air begins to condense) data can then be graphed, printed and exported to other applications.

数据记录器配有长寿命锂电池，这通常可以记录日志了一年。状态指示是通过闪烁的红色和绿色LED。该记录仪进行保护，防止侵入防水，防尘等级达到IP67标准时，塑料瓶盖和密封装配。

The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for a year. Status indication is via flashing red and green LEDs. The logger is protected against ingress from water and dust to IP67 standard when the plastic cap and seal are fitted.
