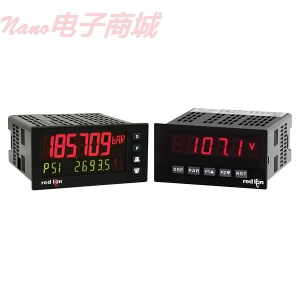

Red Lion PAX2A 智能控制仪

Red Lion PAX2A 智能控制仪

主显示屏提供三个可编程的颜色，因此您可以轻松地识别过程控制变量

通用过程输入：直流电流，直流电压，过程信号，热电偶和RTD

通用电源：50到250 VAC或21.6〜250 VDC

内置USB编程端口

仪表更新率高达100/秒

易PAX风格编程

设定点;双路和四路继电器，四sinking and sourcing

重传的模拟输出，0到10 VDC或0（4）至20 mA

MODBUS通讯，RS-232，RS-485，DeviceNet ™的和Profibus

NEMA 4X（IP65）faceplate/IP20机箱

PAX2A是控制仪表的下一代。从双行显示，其仪表的通用能力功能是完整的，使它有别于其他仪表。输入，总，最小值，最大值或设定值可0.7“高6 -位主要的液晶显示屏上显示，主显示屏还提供三个可编程的颜色，红色，橙色和绿色，应用中颜色的变化可能与操作员的视觉选点有关，绿色液晶显示的第二显示行，0.35”高9位数绿色LED可以进行编程，以及上述任何参数。9位允许累加应用程序，可以轻松地超过了正常的6位数字显示器显示。除了双显示器，仪表还提供一个3位数可编程的助记符，您可添加识别显示值。

仪表接受的直流电流，直流电压，处理信号，热电偶和RTD温度传感器，同时配备了一个通用的电源输入。无论是50至250 VAC或21.6〜250 VDC，只要接上，PAX2A提供最大限度的应用灵活性，持有一个仪表，您可全部应用。PAX2A的理想应用是两个可视化参数同时进行，如读通过管道的流速，同时累加加仑或同时显示设定值的烘箱温度。

Main display offers three programmable colors so you can easily identify process control variables

Universal process inputs: DC current, DC voltage, process signals, thermocouples and RTDs

Universal power supply: 50 to 250 VAC or 21.6 to 250 VDC

Built-in USB programming port

Meter update rate up to 100/second

Easy PAX style programming

Setpoints; dual and quad relay, quad sinking and sourcing

Retransmitted analog output, 0 to 10 VDC or 0 (4) to 20 mA

MODBUS communication; RS-232, RS-485, DeviceNet™ and Profibus

NEMA 4X (IP65) faceplate/IP20 enclosure

The PAX2A is the next generation in panel meters. From its dual-line display to its universal capability the meter is packed full of features that sets it apart from any other meter. The input, total, min, max or setpoints can be displayed on the 0.7" height 6- digit main LCD display. The main display also offers three programmable colors, red, orange and green. The color change can be tied to the setpoints that will provide the operator a visual display of changing conditions in the application. The second display line, 0.35" height 9-digit, green LCD can be programmed any of the above parameters as well. The 9-digit display allows for totalizing application that easily exceeds the normal 6-digit displays. In addition to the dual displays, the meter also offers a 3 digit programmable mnemonic, which allows you to add identification to the display value.

Meter accepts DC currents, DC voltages, process signals, thermocouples and RTD temperature sensors and offers a universal power input as well. Whether its 50 to 250 VAC or 21.6 to 250 VDC, just hook it up. The PAX2A provides the maximum in application flexibility allowing you to stock one meter for all the above applications.

The ideal application for the PAX2A is where two parameters need to be visualized at the same time, like reading a flow rate through a pipeline while totalizing the gallons or indicating the temperature of an oven while displaying the setpoint value.
