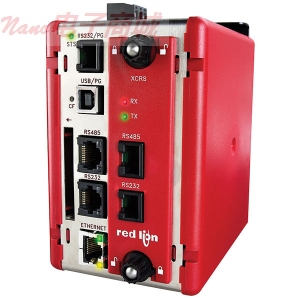

Red Lion DSPSX000 操作界面

Red Lion DSPSX000 操作界面

工业数据采集和管理的纽带

同时多种协议转换

超过200个内置驱动器允许简单的数据映射到PLC，工控机，驱动器和SCADA系统

DSPSX版本配备了标准的Web服务器，数据记录（通过CSV文件格式）和报警邮箱/短信

支持同时九个协议（扩展卡）

DIN导轨安装

工作让其事先32至122°F（0到50°C）

数据站Plus的设计作为一个承上启下的工业数据采集和管理。有三个内置串行端口和一个10 BASE-T/100 Base-TX以太网端口，单位进行协议转换，允许不同的设备无缝沟通彼此。数据站加上作为数据管理平台和PFM主机功能。以太网端口支持多达四个所以即使同时可进行以太网到以太网协议转换的协议。DSPSX版本也有一个内置的Web服务器，提供全球访问数据记录和虚拟HMI CF卡时，允许新的配置文件被加载到数据站加或使用数据记录关键信息。USB端口可用于快速文件下载，或作为外置驱动器数据站的CompactFlash卡安装到您的PC。的DSPSX版本还设有e-mailing/text消息功能，允许被转发到任何手机或报警网络PC。包括：硬件包安装到面板单元。

A nexus for industrial data collection and management

Converts numerous protocols simultaneously

Over 200 built-in drivers allow easy data mapping to PLCs, PCs, drives and SCADA systems

DSPSX version comes with standard web server, data logging (via CSV file format) and alarm e_mail/text messaging

Supports up to nine protocols simultaneously (with expansion card)

DIN rail mounting

Operating termperature 32 to 122°F (0 to 50°C)

The Data Station Plus is designed to act as a nexus for industrial data collection and management. With three built-in serial ports and a 10 Base-T/100 Base-TX Ethernet port, the unit performs protocol conversion, allowing disparate devices to communicate seamlessly with one another. The Data Station Plus functions both as a data management platform and as a PFM host.

The Ethernet port supports up to four protocols simultaneously so even Ethernet-to-Ethernet protocol conversion may be performed. The DSPSX version also has a built-in web server, providing worldwide access to data logs and virtual HMI.

The CompactFlash card allows new configuration files to be loaded into the Data Station Plus or use to data log critical information. The USB port may be used for fast file downloads, or to mount the Data Station’s CompactFlash card as an external drive to your PC.

The DSPSX version also features e-mailing/text messaging capabilities that allow alarms to be forwarded to any cell phone or network PC.

What's Included:

Hardware packet for mounting unit into panel.
