Red Lion PAXT0000 温度控制仪

电压，电流，温度，过程信号输入以及应变仪表

5位数0.56''红色高亮显示

可变亮度显示

16点缩放非线形

程序可编/功能键/用户输入

9数位累加器成组（积分器）

可选的自定义单位覆盖W /背光

设定值报警输出（W /选项卡）

通信和总线功能（W /选项卡）

转播模拟输出（W /选项卡）

深红编程软件

NEMA 4X/IP65密封前挡板

零件编号代表各种型号和功能。部分号码输出或通讯卡

PAX ®模拟面板表提供了许多功能和性能，以满足广泛的工业应用。可选五种不同型号，以处理各种模拟输入，包括直流电压/电流，交流电压/电流，工艺，温度，应变计输入。可选插入式输出卡可为当前应用程序配置表，同时轻松升级，满足未来需求。仪表采用明亮的0.56”LED显示屏。该机是红色或绿色LED显示。显示器的强度可调，无论是暗处应用还是阳光下的可读性，使其成为强光下应用的理想选择。该计具有可编捕捉时间的最大最小读书储存。捕捉时间是用来防止在启动或不正常程序下，最大或最小读数检测错误。信号累加器（积分器）可以被用于计算时间输入产品。这可用于提供读出总计流，计算电机或泵等服务间隔。累加器还可以积累分批称重操作。计有四个定位点输出,插入式选项卡。插件卡片提供双c型继电器（5A），四-A（3A），或任一四下沉或四采购集电极开路逻辑输出。可设定报警配置，以适应各种控制和报警要求。

Process, Voltage, Current, Temperature, And Strain Gauge Inputs

5-Digit 0.56'' Red Sunlight Readable Display

Variable Intensity Display

16 Point Scaling For Non-Linear Processprogrammable Function Keys/User Inputs

9 Digit Totalizer (Integrator) With Batching

Optional Custom Units Overlay W/Backlight

Our Setpoint Alarm Outputs (W/Option Card)

Communication And Bus Capabilities (W/Option Card)

Retransmitted Analog Output (W/Option Card)

Crimson Programming Software

NEMA 4X/IP65 Sealed Front Bezel

PART NUMBERS REPRESENT VARIOUS MODELS AND FEATURES. SOME PART NUMBERS ARE OUTPUT OR COMMUNICATIONS CARDS

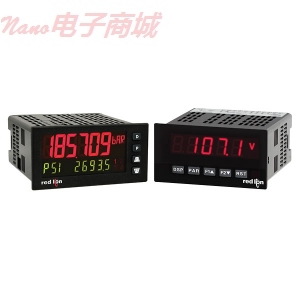

The PAX® Analog Panel Meters offer many features and performance capabilities to suit a wide range of industrial applications. Available in five different models to handle various analog inputs, including DC Voltage/Current, AC Voltage/Current, Process, Temperature, and Strain gauge Inputs. The optional plug-in output cards allow the opportunity to configure the meter for present applications, while providing easy upgrades for future needs. The meters employ a bright 0.56'' LED display. The unit is available with a red sunlight readable or a standard green LED. The intensity of display can be adjusted from dark room applications up to sunlight readable, making it ideal for viewing in bright light applications.

The meters provide a MAX and MIN reading memory with programmable capture time. The capture time is used to prevent detection of false max or min readings which may occur during start-up or unusual process events.

The signal totalizer (integrator) can be used to compute a time-input product. This can be used to provide a readout of totalized flow, calculate service intervals of motors or pumps, etc. The totalizer can also accumulate batch weighing operations.

The meters have four setpoint outputs, implemented on Plug-in option cards. The Plug-in cards provide dual FORM-C relays (5A), quad FORM-A (3A), or either quad sinking or quad sourcing open collector logic outputs. The setpoint alarms can be configured to suit a variety of control and alarm requirements.
