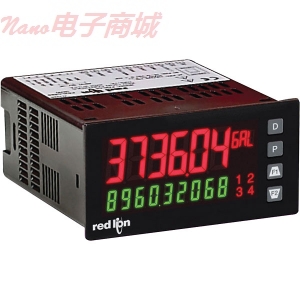

Red Lion PAX2S000 智能控制仪

Red Lion PAX2S000 智能控制仪

现场可升级，最大的灵活性和可购性

内置USB编程端口

易PAX风格编程

现场安装的选项卡

可编程单位显示设置

NEMA 4X（IP65）faceplate/IP20机箱

双线PAX2的应用程序两个参数可视化同一时间进行，在提供了一个理想的解决方案。0.7“高6位主LCD显示屏提供三种可编程颜色：红色，橙色和绿色，可以设置基于预设报警条件改变颜色，显示行第二是0.35”高9数位，绿色液晶可以用于显示诸如批次累计。仪表处理应变计的输入信号累加器（积分器）可用于计算时间输入或积累称量操作。仪表提供现场安装可选插件卡，可以让有机会配置电表目前的应用程序，同时轻松升级，满足未来需求

Field upgradeable for maximum flexibility and affordability

Built-in USB programming port

Easy PAX style programming

Field-installable option cards

Programmable Units Display

NEMA 4X (IP65) faceplate/IP20 enclosure

The Dual-Line PAX2 delivers an ideal solution for applications that require two parameters to be visualized at the same time. The 0.7" high 6-digit main LCD display offers three programmable colors: red, orange and green that can be setup to change colors based on preset alarm conditions. A second display line is a 0.35" high 9-digit, green LCD which may be used to display such things as batch totalization.

The meter handles strain gage inputs and the signal totalizer (integrator) can be used to compute a time-input or an accumulation weighing operation. The meter offers field installable optional plug-in cards that allow the opportunity to configure the meter for present applications, while providing easy upgrades for future needs.
