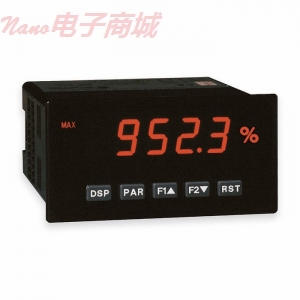

Red Lion PAXS0010 应变计/负载电池控制仪

Red Lion PAXS0010 应变计/负载电池控制仪

电压，电流，温度，过程信号输入以及应变仪表

5位数0.56''红色高亮显示

可变亮度显示

16点缩放非线形

程序可编/功能键/用户输入

9数位累加器成组（积分器）

可选的自定义单位覆盖W /背光

设定值报警输出（W /选项卡）

通信和总线功能（W /选项卡）

转播模拟输出（W /选项卡）

深红编程软件

NEMA 4X/IP65密封前挡板

零件编号代表各种型号和功能。部分号码输出或通讯卡

PAX ?模拟面板表提供了许多功能和性能，以满足广泛的工业应用。可选五种不同型号，以处理各种模拟输入，包括直流电压/电流，交流电压/电流，工艺，温度，应变计输入。可选插入式输出卡可为当前应用程序配置表，同时轻松升级，满足未来需求。仪表采用明亮的0.56”LED显示屏。该机是红色或绿色LED显示。显示器的强度可调，无论是暗处应用还是阳光下的可读性，使其成为强光下应用的理想选择。该计具有可编捕捉时间的最大最小读书储存。捕捉时间是用来防止在启动或不正常程序下，最大或最小读数检测错误。信号累加器（积分器）可以被用于计算时间输入产品。这可用于提供读出总计流，计算电机或泵等服务间隔。累加器还可以积累分批称重操作。计有四个定位点输出,插入式选项卡。插件卡片提供双c型继电器（5A），四-A（3A），或任一四下沉或四采购集电极开路逻辑输出。可设定报警配置，以适应各种控制和报警要求。

Process, Voltage, Current, Temperature, And Strain Gauge Inputs

5-Digit 0.56'' Red Sunlight Readable Display

Variable Intensity Display

16 Point Scaling For Non-Linear Processprogrammable Function Keys/User Inputs

9 Digit Totalizer (Integrator) With Batching

Optional Custom Units Overlay W/Backlight

Our Setpoint Alarm Outputs (W/Option Card)

Communication And Bus Capabilities (W/Option Card)

Retransmitted Analog Output (W/Option Card)

Crimson Programming Software

NEMA 4X/IP65 Sealed Front Bezel

PART NUMBERS REPRESENT VARIOUS MODELS AND FEATURES. SOME PART NUMBERS ARE OUTPUT OR COMMUNICATIONS CARDS

The PAX? Analog Panel Meters offer many features and performance capabilities to suit a wide range of industrial applications. Available in five different models to handle various analog inputs, including DC Voltage/Current, AC Voltage/Current, Process, Temperature, and Strain gauge Inputs. The optional plug-in output cards allow the opportunity to configure the meter for present applications, while providing easy upgrades for future needs. The meters employ a bright 0.56'' LED display. The unit is available with a red sunlight readable or a standard green LED. The intensity of display can be adjusted from dark room applications up to sunlight readable, making it ideal for viewing in bright light applications.

The meters provide a MAX and MIN reading memory with programmable capture time. The capture time is used to prevent detection of false max or min readings which may occur during start-up or unusual process events.

The signal totalizer (integrator) can be used to compute a time-input product. This can be used to provide a readout of totalized flow, calculate service intervals of motors or pumps, etc. The totalizer can also accumulate batch weighing operations.

The meters have four setpoint outputs, implemented on Plug-in option cards. The Plug-in cards provide dual FORM-C relays (5A), quad FORM-A (3A), or either quad sinking or quad sourcing open collector logic outputs. The setpoint alarms can be configured to suit a variety of control and alarm requirements.

产品规格
输入	24 mV差分240 mV的差分
产品类型	应变计/负载电池控制仪
描述	1/8 DIN应变仪/称重传感器面板仪表
电源（VDC）	11至36
电源（VAC）	24
显示	5位，0.56“（14.2毫米）红色LED（-19999至99999）
工作条件	0〜50℃下
附件	NEMA 4X / IP65
品牌	红狮
出厂编号	PAXS0010
型号	PAXS0010



Specifications
Input	24 mV Differential 240 mV Differential
Product Type	Strain gauge / load cell panel meters
Description	1/8 DIN Strain Gauge / Load Cell Panel Meter
Power (VDC)	11 to 36
Power (VAC)	24
Display	5-digit, 0.56" (14.2 mm) Red LED, (-19999 TO 99999)
Operating conditions	0 to 50°C
Enclosure	NEMA 4X / IP65
Brand	Red Lion
Manufacturer number	PAXS0010
Model	PAXS0010
